Network Types & VPNs — ENHANCED Guide

🎯 Objective

Give a clear, practical reference for common network types (WAN, LAN/WLAN, VPN) and related book terms (GAN, MAN, PAN/WPAN), with security notes and quick verification steps you can run on a host.

🧭 Scope & Assumptions

• Audience: blue-teamers, pentesters, homelab builders.
• Focus: conceptual clarity + quick checks from a client or edge device.
• IP addressing references follow RFC 1918 for private networks.

📚 Core Definitions (At a Glance)

RFC 1918 private ranges: 10.0.0.0/8, 172.16.0.0/12, 192.168.0.0/16

🌐 WAN

A WAN is a large network of joined LANs. Public Internet is the canonical WAN, but many enterprises maintain internal WANs (intranets/air‑gapped networks).

How to recognize a WAN context

• Edge devices speak BGP (or other WAN routing protocols).
• Client/edge IPs are not RFC1918 (public or provider-assigned).
• Path traverses multiple autonomous systems (AS) upstream.

Rule of thumb: “Is this address routable on the Internet?” If yes, you’re in WAN space.

🏠 LAN / WLAN

LAN = local wired network. WLAN = the same local network but over Wi‑Fi (radio). Functionally identical from IP’s perspective; WLAN is a medium (wireless) and security boundary.

• Typical addressing: RFC1918 (10/8, 172.16/12, 192.168/16).
• Some institutions (hotels/campuses) may hand out public IPs on access—rarer today.

Examples
- Home router: 192.168.1.0/24
- Office core: 10.10.0.0/16
- Guest Wi‑Fi VLAN: 172.16.50.0/24

WLAN security quick hits

• Prefer WPA3‑Personal (home) or WPA2‑Enterprise / 802.1X (corp).
• Disable WPS, use strong PSKs if not doing 802.1X.
• Segment guest/IoT via VLANs; consider AP isolation for guests.

🧪 VPN Overview

All VPNs aim to make you appear inside a different network.

🔗 Site‑to‑Site VPN

• Both ends are network devices (routers/firewalls).
• Shares entire subnets; permanent encrypted link between offices/sites.
• Typical tech: IPsec policy‑based/route‑based, sometimes GRE+IPsec.

Why pure site‑to‑site isn’t always enough today

• Cloud/SaaS shifts make hair‑pinning to HQ inefficient. Consider direct-to-cloud or SD‑WAN/SASE designs.

👤 Remote Access VPN

• Individual client creates a virtual interface (TUN/TAP) and receives routes.
• Split‑tunnel: only specific prefixes go through VPN (e.g., 10.10.0.0/16). Internet egress stays local (good for HTB labs; riskier for corp security).
• Full‑tunnel: all traffic via VPN gateway (centralized egress/inspection).

Example (OpenVPN/TUN):

# Inspect routes added by a VPN client (Linux)
ip route show table main | grep -E 'tun|wg|ppp|10\.10\.'

🌐 SSL VPN (Clientless / Browser-based)

• Runs over HTTPS; often provides app/desktop portals in the browser.
• Great for ad‑hoc access without a full client.

🧭 Choosing the Right Model (Quick Matrix)

🔍 Quick Identification & Validation

Detect where you are (client-side)

# Show local addresses (Linux)
ip addr

# Is your default route going through a VPN adapter?
ip route | sed -n '1,5p'

# DNS servers (NetworkManager)
nmcli dev show | grep -i 'DNS'

# What’s my public IP? (if allowed)
curl -s https://ifconfig.io ; echo

LAN vs WAN sanity checks

• If your host IP is RFC1918 and default route points to a local gateway → LAN/WLAN.
• If you see a tunnel interface with specific routes (10/172/192), you’re likely on Remote Access VPN.
• If packets to a branch subnet go out your local LAN GW, but show encrypted ESP on the wire between edge devices → Site‑to‑Site VPN.

🛡️ Security Considerations

• Enforce MFA on all remote access/SSL VPNs.
• Use least privilege routing (export only necessary prefixes).
• Terminate tunnels on hardened devices; keep firmware updated.
• For split‑tunnel deployments, add EDR on endpoints + DNS/DoH/DoT policies.
• Monitor tunnel health & logs (ISAKMP/IKE/IPsec SAs, TLS session stats).

📖 Book Terms (Extended)

GAN

A Global Area Network spans multiple WANs and continents. Enterprises may operate private global networks over carrier fibers and satellite links.

MAN

A Metropolitan Area Network connects several LANs in a metro region with fiber and high‑performance routing—latency/throughput akin to intra‑LAN links.

PAN / WPAN

Ad‑hoc personal networks. Wireless forms (WPAN) typically use Bluetooth and are common in IoT. Range is a few meters; not suitable for cross‑building links.

🧩 Examples & Visuals

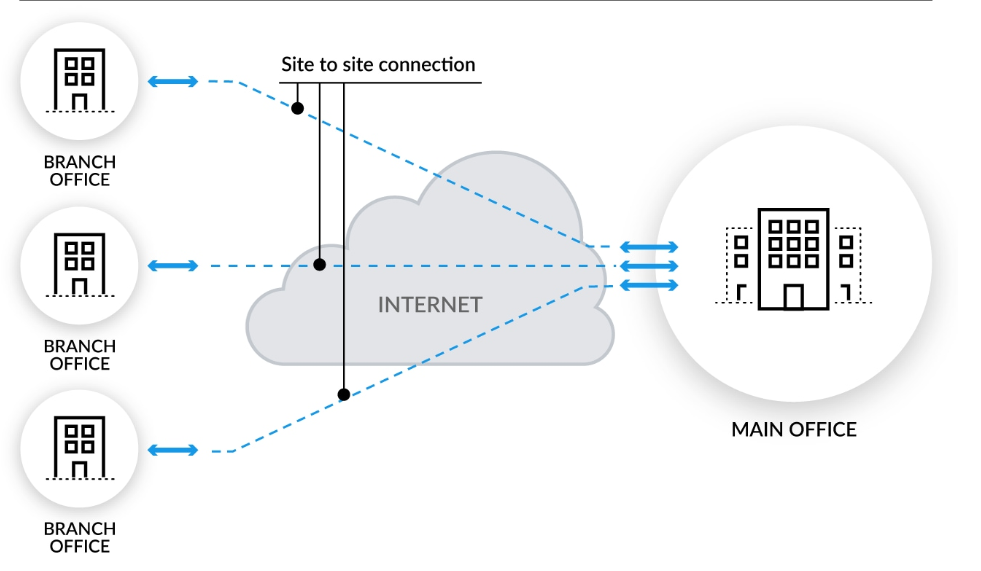

Site‑to‑Site Topology

Remote Access (Concept)

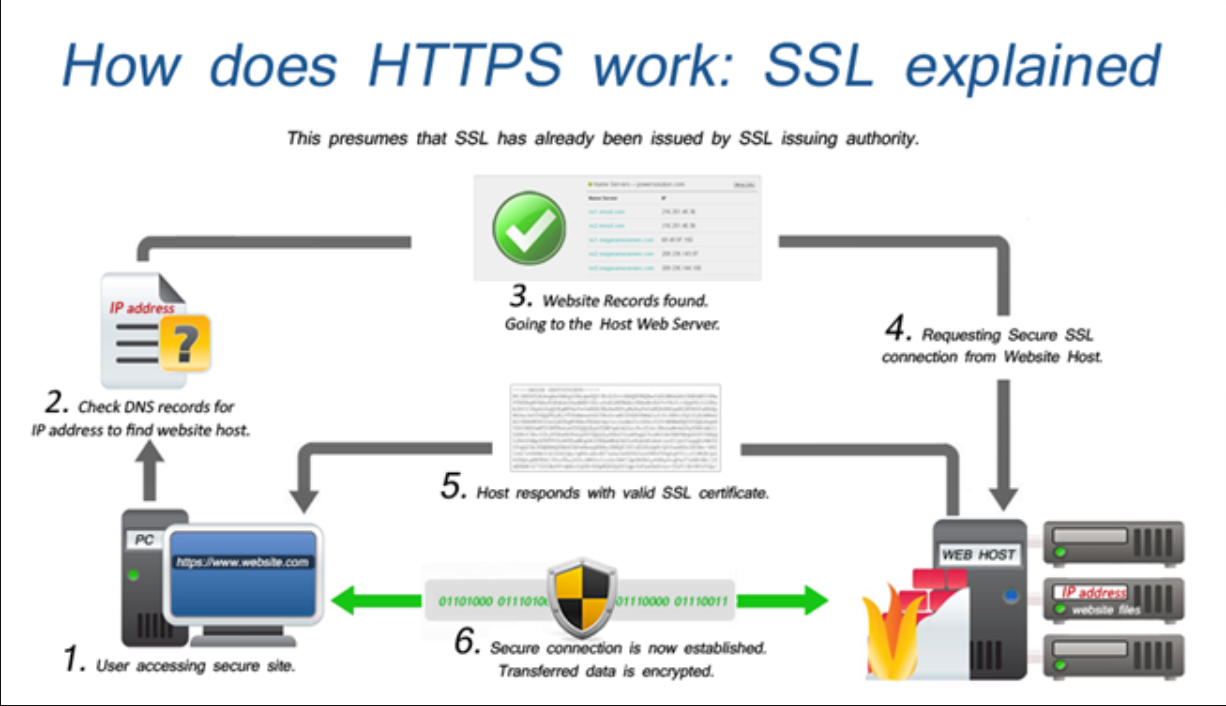

SSL VPN Portal

✅ Troubleshooting Checklist

• IP is RFC1918 and gateway is local → likely LAN/WLAN.
• TUN/TAP interface present with specific routes → Remote Access VPN.
• Branch prefixes reachable and encrypted between edges → Site‑to‑Site.
• Cloud/SaaS latency high? Consider direct internet access + SASE/ZTNA.
• Wi‑Fi weak security? Upgrade to WPA3 / use 802.1X with RADIUS.
• Split‑tunnel corporate VPN? Confirm endpoint security & DNS policies.

📎 References & Further Reading

• RFC 1918 — Address Allocation for Private Internets
• NIST SP 800‑77 — Guide to IPsec VPNs
• Vendor docs: IPsec, OpenVPN, SSL VPN, ZTNA/SASE
• Bluetooth Core Spec; ZigBee, Z‑Wave protocol overviews

🧱 Appendix: Handy Commands

# Linux: routing and interfaces
ip addr
ip route
ip -br a

# Show active TCP/UDP ports
ss -tulpen

# Trace a path (ICMP/UDP/TCP modes)
traceroute -I example.com
traceroute -T -p 443 example.com

# Observe ESP (IPsec) on the wire (needs privileges)
sudo tcpdump -ni any proto 50 or port 4500

# OpenVPN process/routes quick peek
ps aux | grep -i openvpn
ip route | grep -E 'tun|10\.10\.'

# Wi-Fi basics (NetworkManager)
nmcli dev wifi list
nmcli con show

Prepared in the same “ENHANCED” structure you’ve used previously — objective → definitions → practical guidance → validation → references.
