HTB Academy - Network Wireshark and extract

🎯 Objective

Use Wireshark to recover application data and files directly from captured network streams (HTTP/SMB/DICOM/FTP, etc.), and—when needed—manually reconstruct artifacts from FTP data channels using filters and Follow TCP Stream.

✅ Prereqs & Gotchas

• Capture completeness matters: You need the entire conversation (3‑way handshake → teardown) or reassembly may fail.
• Fragmentation/reassembly: If segments are missing, Wireshark can’t rebuild full objects. See TCP reassembly/fragmentation topics in Networking 101.
• Stop the live capture before exporting objects.

📦 Exporting Files the Easy Way (GUI)

1. Stop your capture.
2. File → Export → choose the protocol object exporter you need (e.g., DICOM / HTTP / SMB /…).
3. Inspect the object list, select targets, and Save.

Tip: For HTTP, File → Export Objects → HTTP lists each response with filename, content‑type, and length. SMB and DICOM have similar flows.

🔎 FTP Deep Dive — Pulling Credentials & Files

FTP rides on TCP ports 21 (control) and 20 (data). Wireshark’s display filters make triage fast. Three staples:

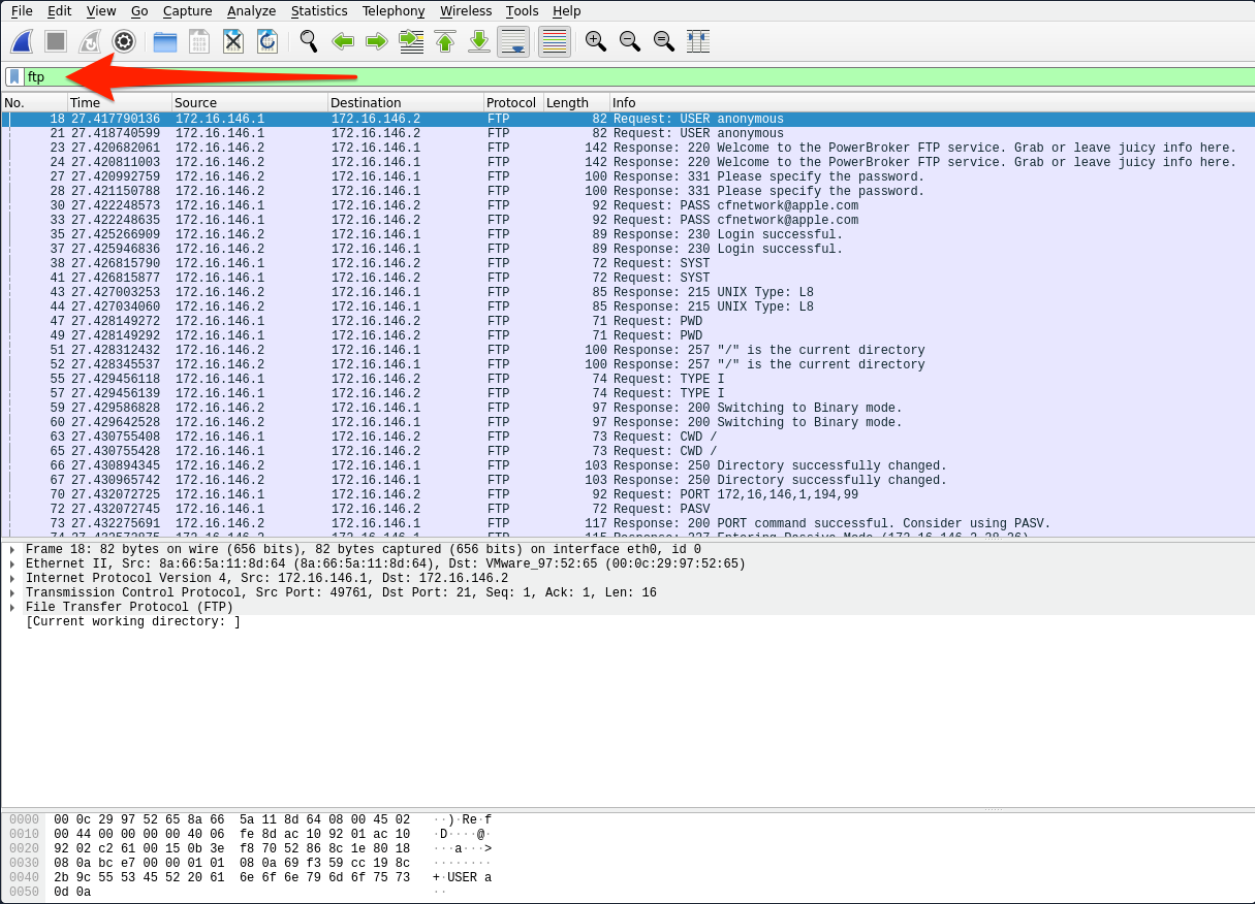

• ftp – all FTP control/data (good first pass).

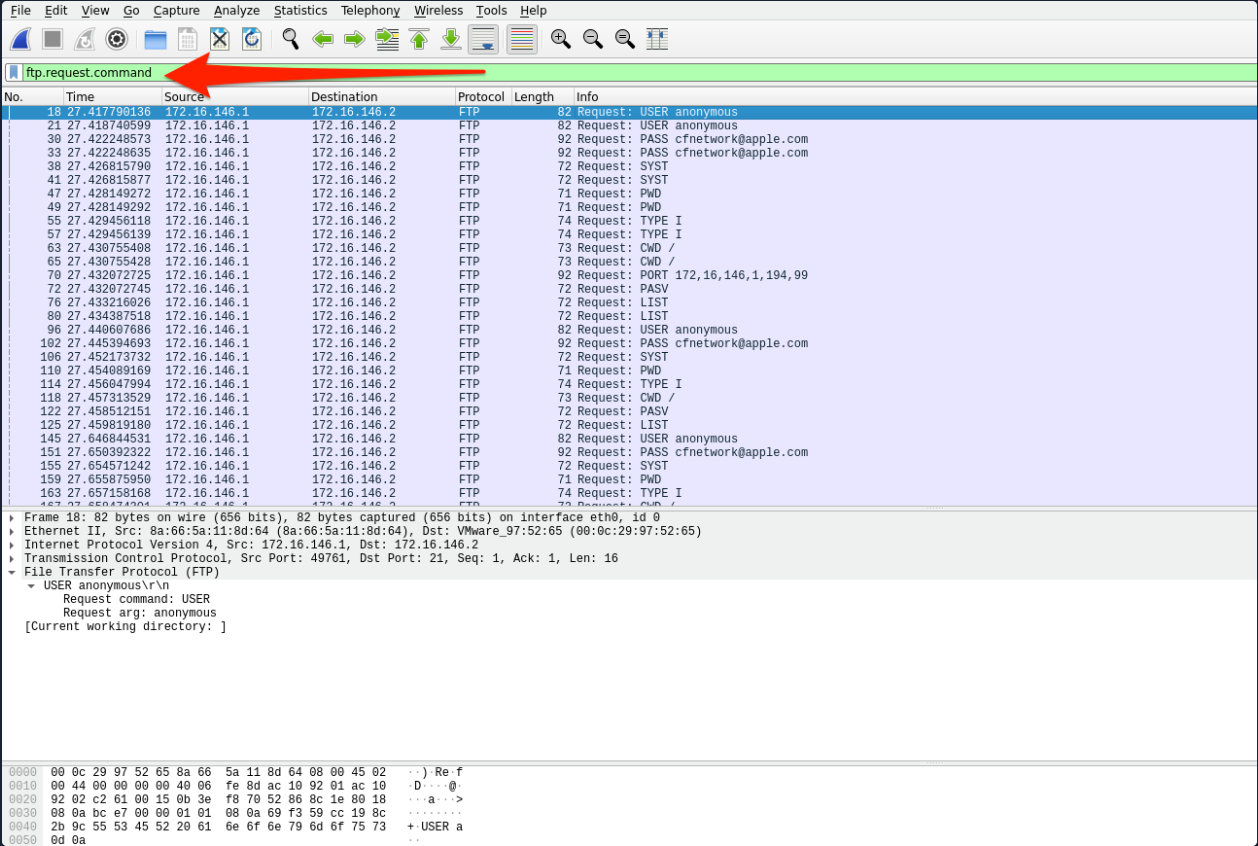

• ftp.request.command – control channel commands on port 21 (watch for USER, PASS, RETR, STOR, filenames).

  FTP-Request-Command Filter

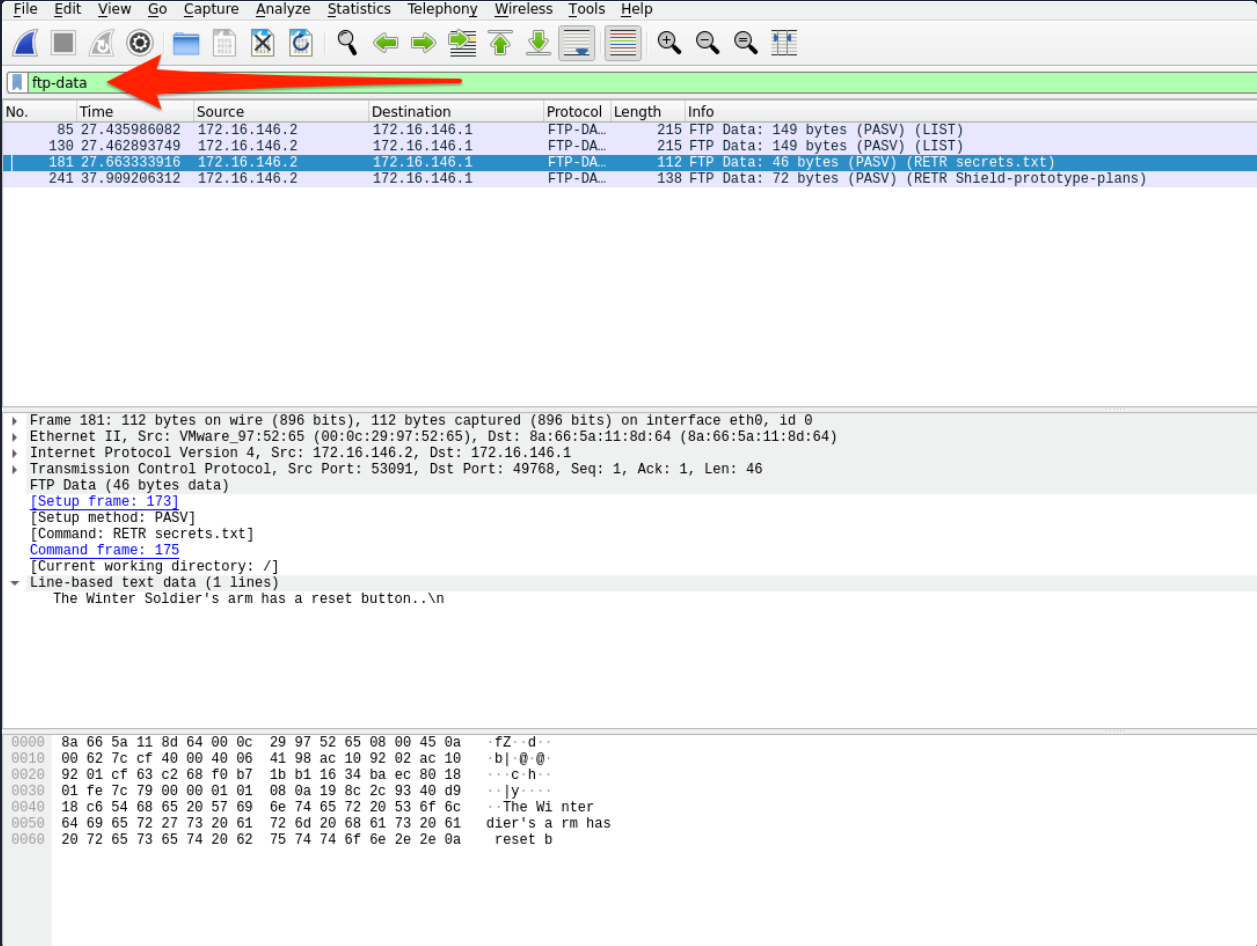

• ftp-data – data channel payload on port 20 (actual file bytes).


🧭 FTP File Extraction — Step‑by‑Step

1. Find FTP activity
   Apply ftp to see hosts, sessions, and control chatter.
2. Identify targets
   Use ftp.request.command to spot credentials and transfers (e.g., RETR secret.docx).
3. Lock to the file’s data stream
   Switch to ftp-data, select a packet from the relevant transfer, then Right‑click → Follow → TCP Stream.
4. Save raw bytes
   In the Follow dialog, set “Show and save data as” → Raw, then Save. Name it like the original (e.g., secret.docx).
5. Validate
   On Linux/macOS:
   bash Copy

   file secret.docx
   md5sum secret.docx

   On Windows, try opening it or use PowerShell Get-FileHash.

If the data stream shows binary gibberish (expected), saving as Raw writes the exact payload bytes.

🧰 Helpful Display Filters (copy‑paste)

# FTP triage
ftp
ftp.request.command
ftp.response.code
ftp-data

# HTTP triage
http
http.request
http.response
http.content_type contains "application/"

🧪 Troubleshooting

• Partial files / corrupt exports → Conversation incomplete or TCP segments missing. Re‑capture with a closer tap or disable offload features on the capture NIC.
• Empty object list → Wrong protocol exporter; confirm the traffic is actually HTTP/SMB/etc., not TLS‑wrapped.
• TLS gotchas → Encrypted (HTTPS/SMB3 w/ encryption) won’t export without keys. Look for plaintext endpoints or capture pre‑master secrets (dev/test).
• Active vs Passive FTP → Data port may vary; rely on ftp-data and Follow Stream instead of hard‑coding port numbers.
• Reassembly settings → Check Edit → Preferences → Protocols → TCP (e.g., “Allow subdissector to reassemble TCP streams”).

📝 Quick Reference — Manual Reconstruction Flow

1. Filter protocol (ftp / http / smb2) → find the transfer.
2. Isolate the right stream (conversation context, 5‑tuple).
3. Follow TCP Stream on the data flow.
4. Save as Raw.
5. Validate the file type and integrity.

✅ TL;DR

• Use Export Objects for supported protocols (HTTP/SMB/DICOM).
• For FTP, pivot on ftp.request.command to find the filename, then extract bytes from ftp-data → Follow TCP Stream → Raw.
• Completeness is king: no full stream → no clean file.
