Project note

From Backdriving to Self-Locking — The Worm Gear Finally Works

After struggling with backdriving in my litter box design, I implemented a worm gear solution. Now the system holds position without power. A simple mechanical fix that transformed stability and reliability.

6 tags
Tags

🐛 Worm Gear Implementation — Eliminating Backdriving

After running into backdriving issues in the litter box mechanism, I redesigned the drivetrain to use a worm gear instead of a pinion + large gear setup.

This post documents the actual fix and why it works.

🧠 Original Problem

Initial setup:

  • NEMA 23 → pinion gear
  • Pinion → large gear attached to drum

Problem:

  • The drum has significant weight
  • When the motor stops, gravity applies torque on the large gear
  • That torque propagates back through the gear train
  • Result: motor rotates backwards (backdriving)

Effects:

  • Loss of position
  • Unstable resting state
  • System cannot hold without power

🔩 Why It Happens

Standard gears are bidirectional:

text
Motor → Gear → Load
Load → Gear → Motor   (backdriving)

If load torque > motor holding torque (unpowered), the system moves.

🔧 Solution — Worm Gear

Replaced the pinion system with a worm gear drive.

Property:

  • Worm drives gear ✅
  • Gear cannot drive worm ❌ (under friction conditions)

Result:

text
Motor → Worm → Gear → Load   ✅
Load → Gear → Worm → Motor   ❌

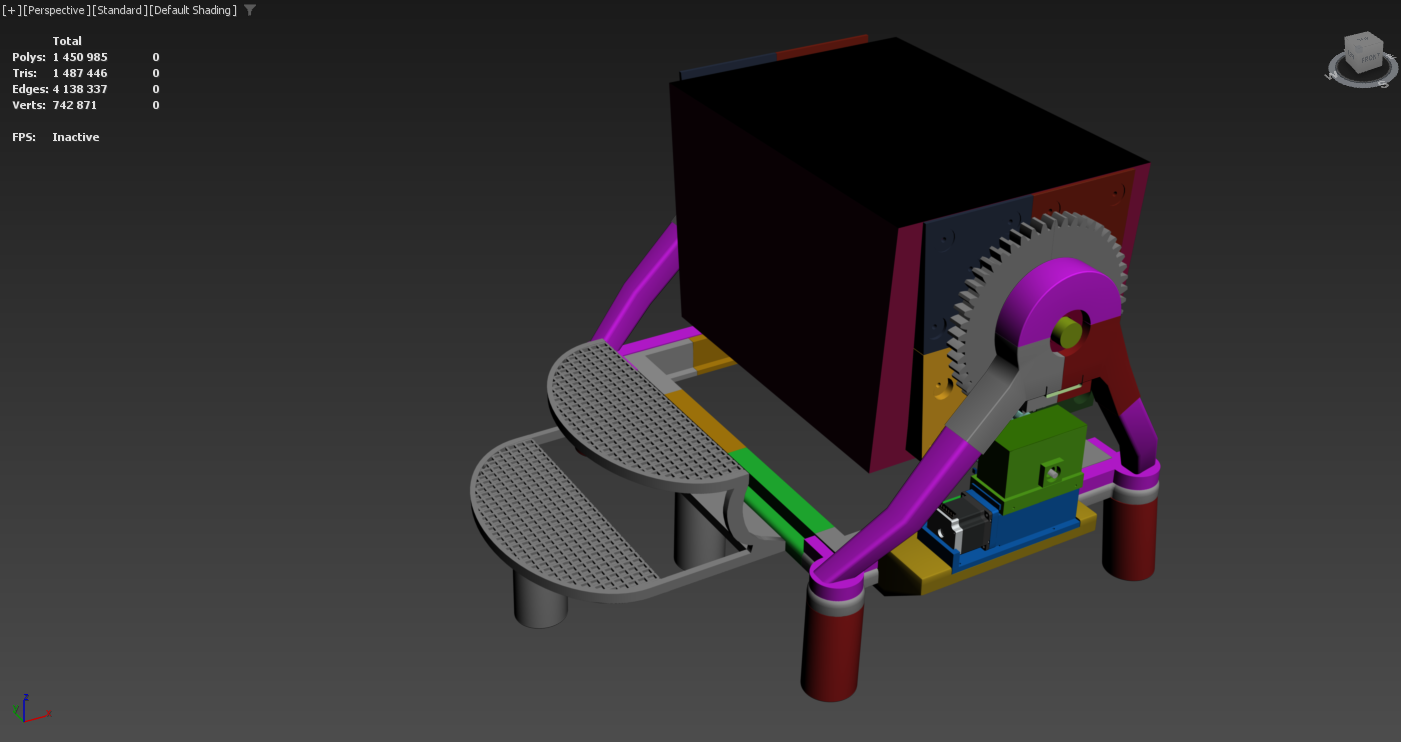

📸 Integrated System

Worm Gear Integrated

🎥 Verification — No Backdriving

Observed:

  • Motor drives normally
  • System stops → holds position
  • No reverse motion
  • No holding current required

⚙️ Key Design Notes

1. Self-Locking Condition

Depends on:

  • Lead angle
  • Friction coefficient

Low lead angle + friction ⇒ self-locking

2. Alignment

Critical:

  • Parallel axes
  • Correct center distance

Misalignment → binding / wear

3. Friction Tradeoff

  • Higher friction → better locking
  • Lower friction → better efficiency

In this case: locking > efficiency

4. Structural Stability

Required:

  • Rigid motor mount
  • Supported worm shaft
  • Minimal flex

Flex = poor gear contact

🧪 Result

  • Backdriving eliminated
  • Holds position without power
  • More predictable behavior
  • Simpler control logic

🚀 Next

  • Rewrite the firmware code for nema 23 motor in order to use faster speed of the motor regardless if its controlled by a webserver.
  • Merge it to the Cat litterbox chassi
  • Check that the backwards gear is working propertly
