Project Cat Feeder Part 1

Project Cat Feeder Part 1: When I’m not home, my cats still need food. I started a new project and explored a few concepts to find a design I like. • IoT • cat-feeder, relay

3 tags
Tags

🎯 Why

When I’m not home, my cats still need food. I started a new project and explored a few concepts to find a design I like.

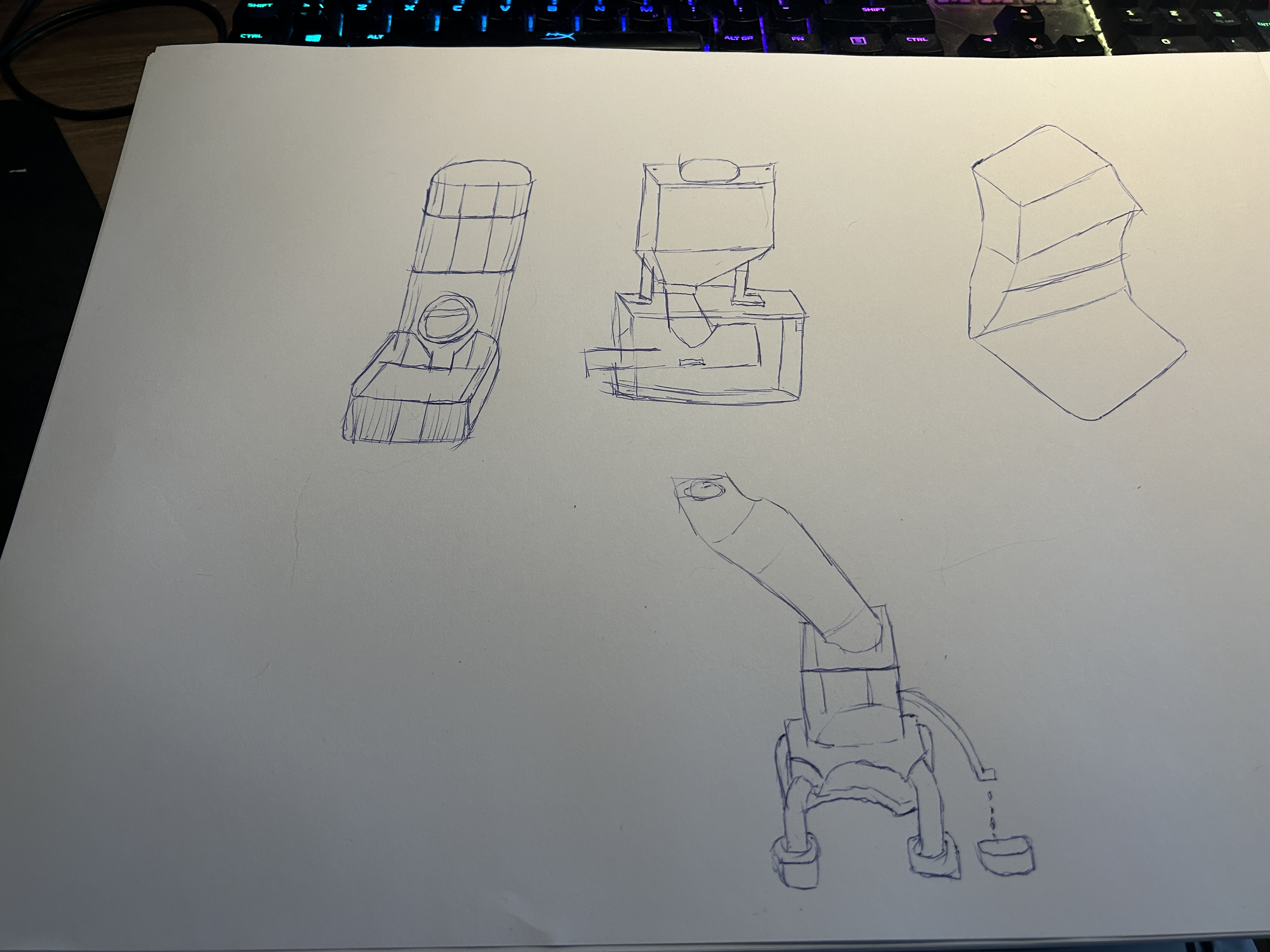

✏️ Early sketches

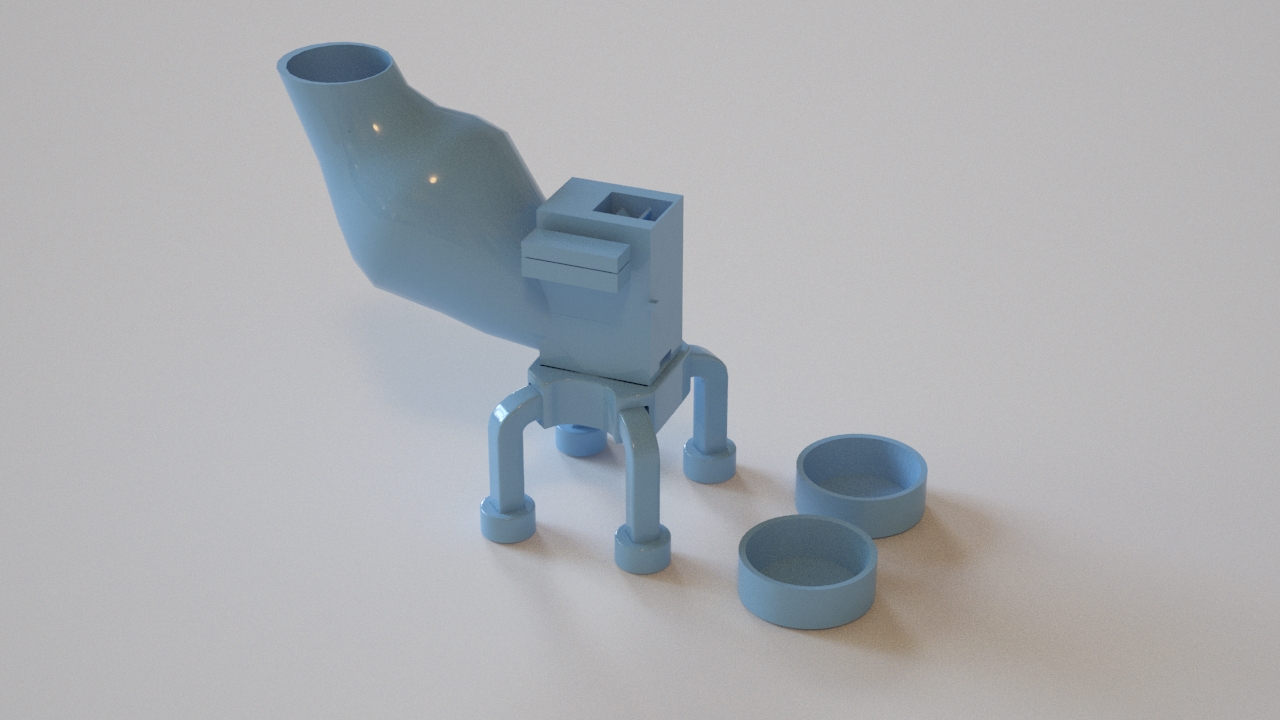

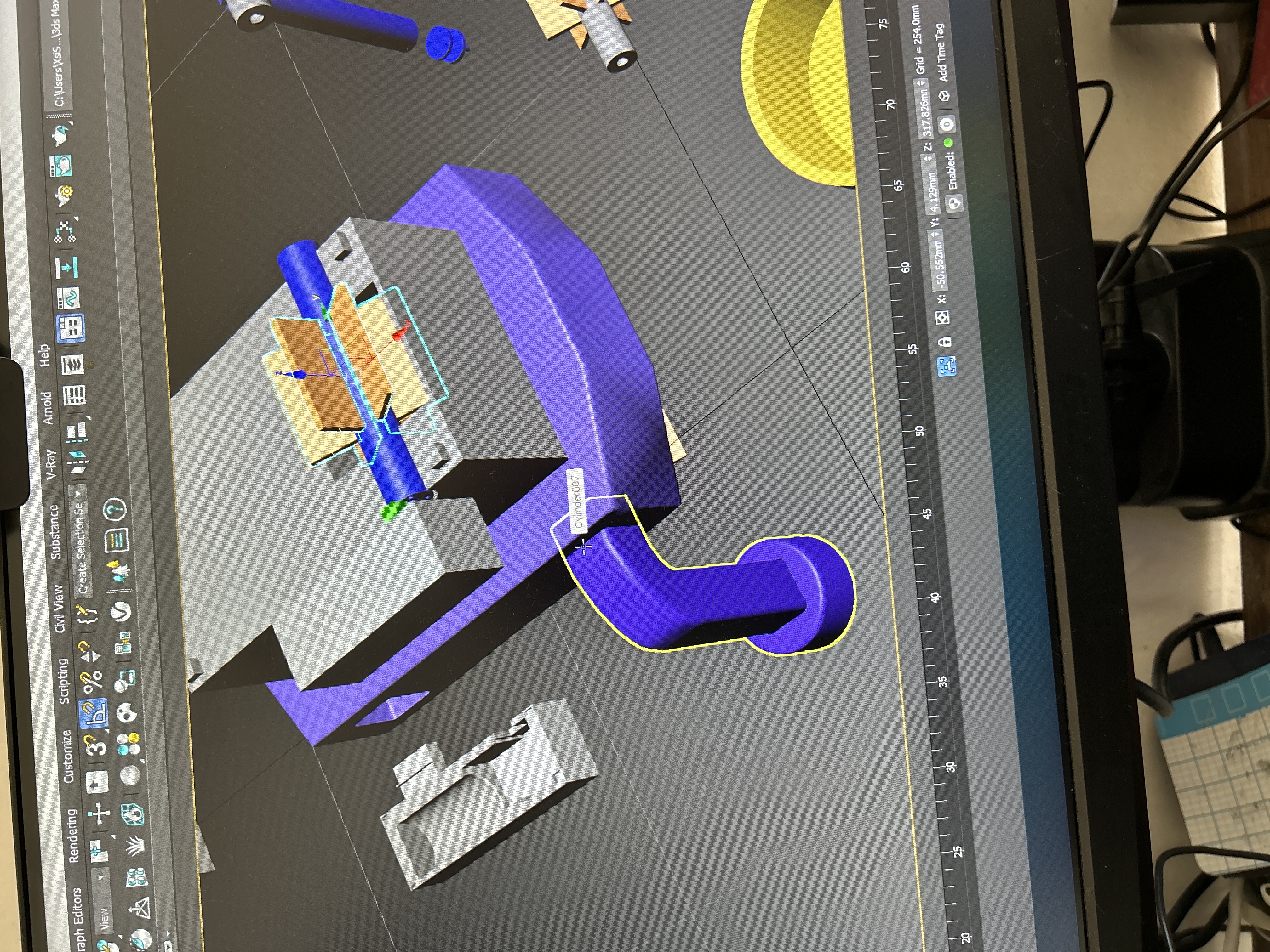

🧱 3D visualization (Autodesk 3ds Max)

image image

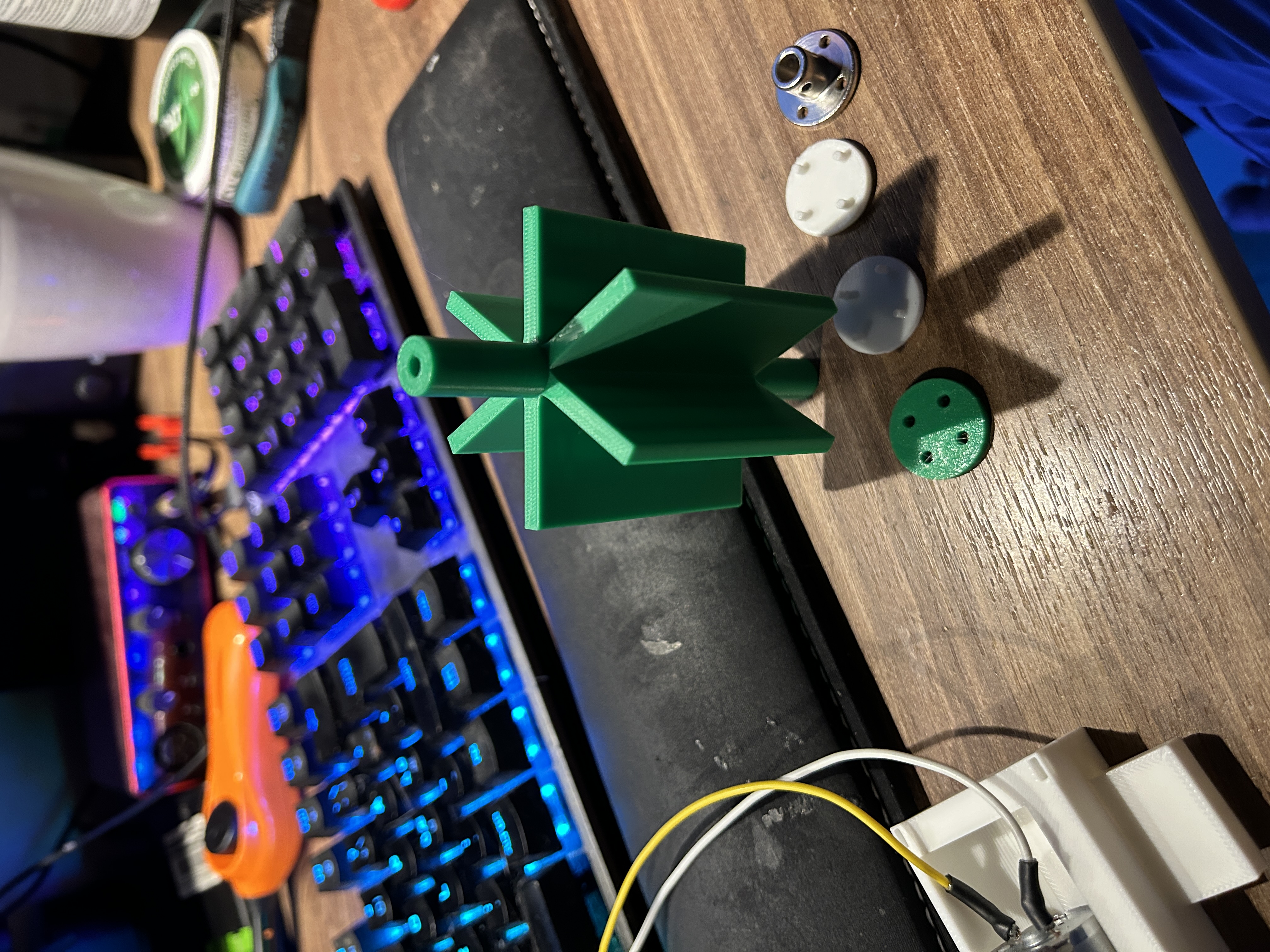

⚙️ Mechanics: water‑wheel drive

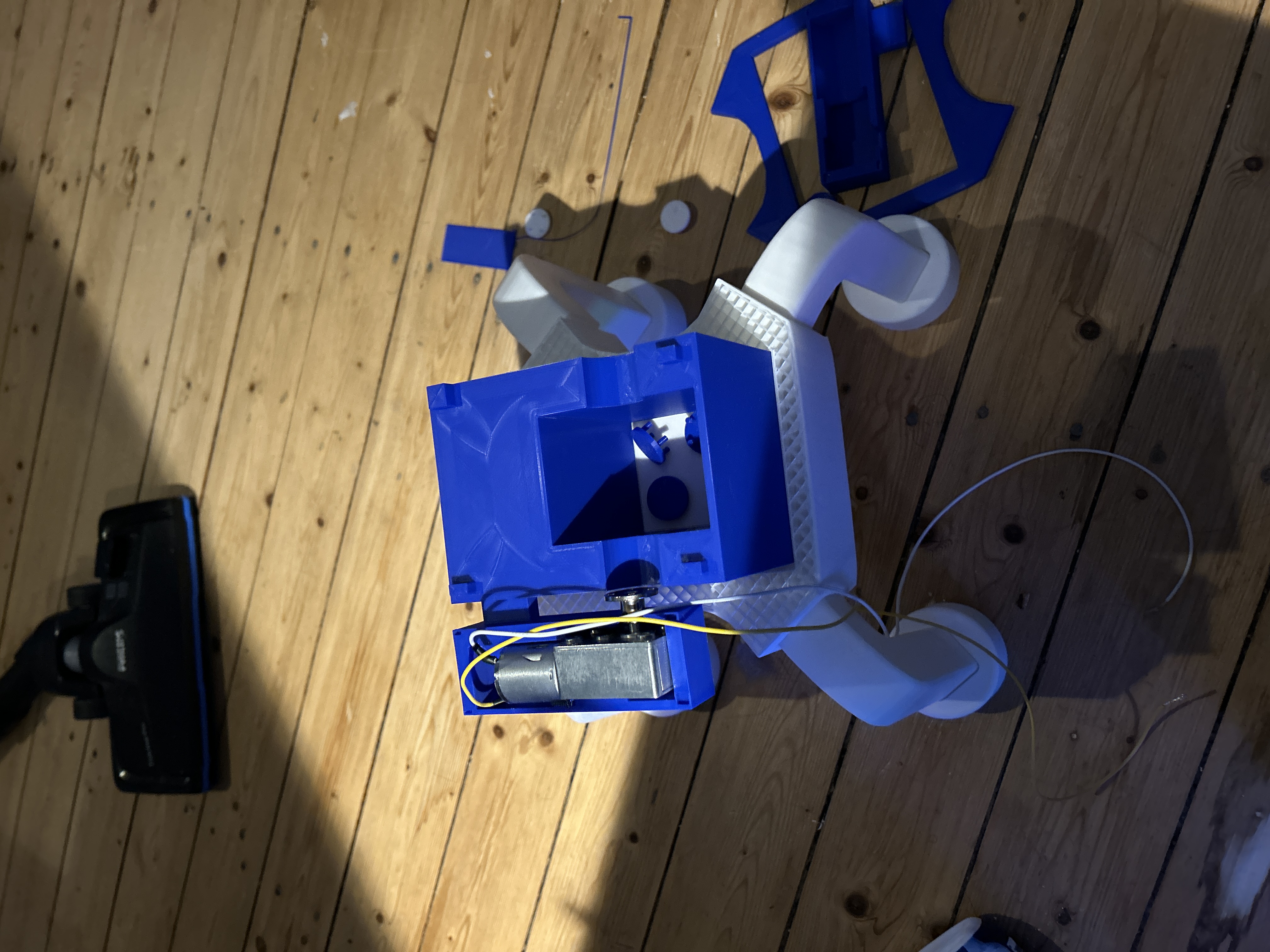

Printed all chassis parts for the hardware and spent time dialing in the water‑wheel mechanics so it runs smoothly. image

🧠 DC motor mount iterations

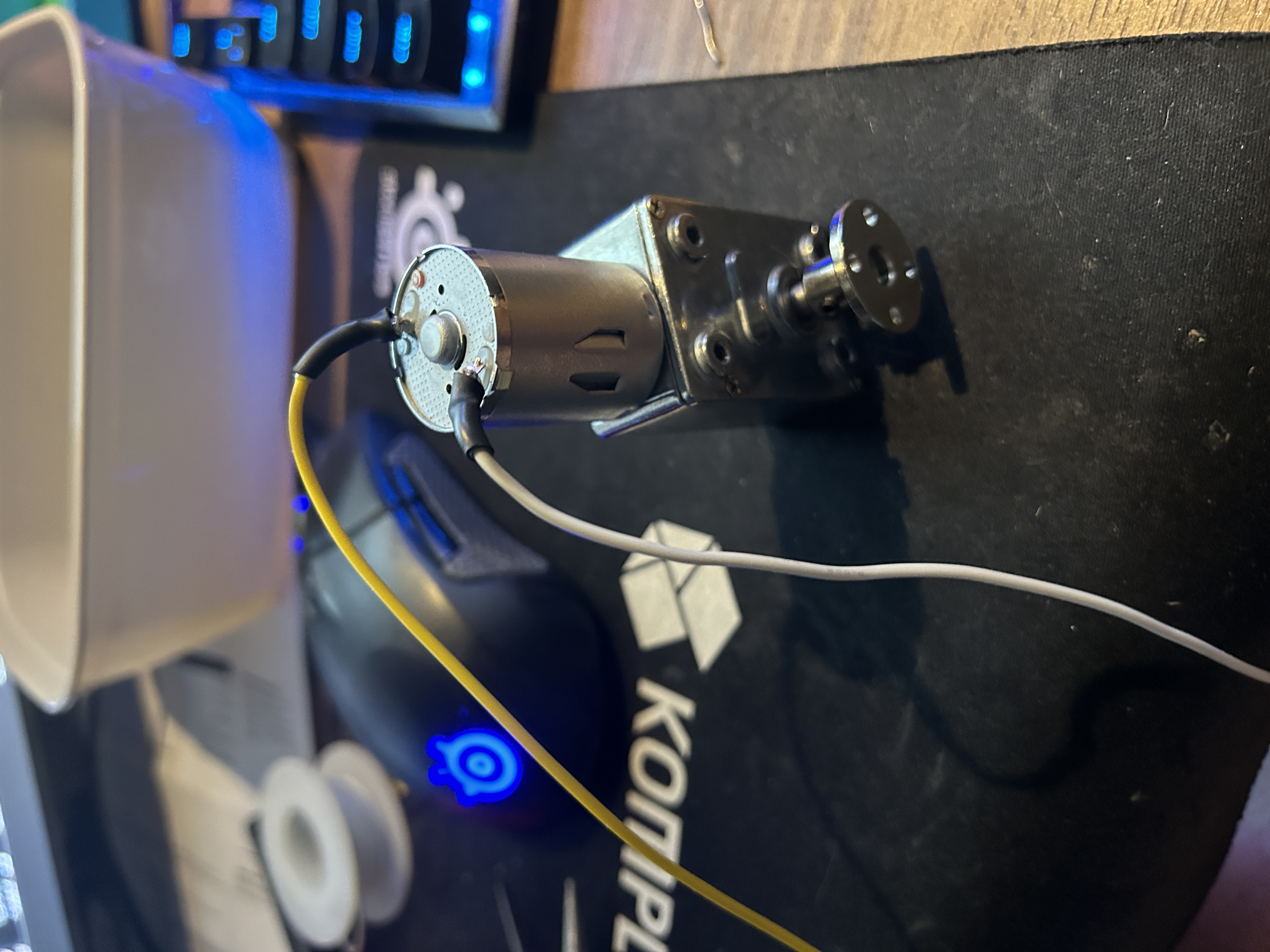

A more fitted motor model: image

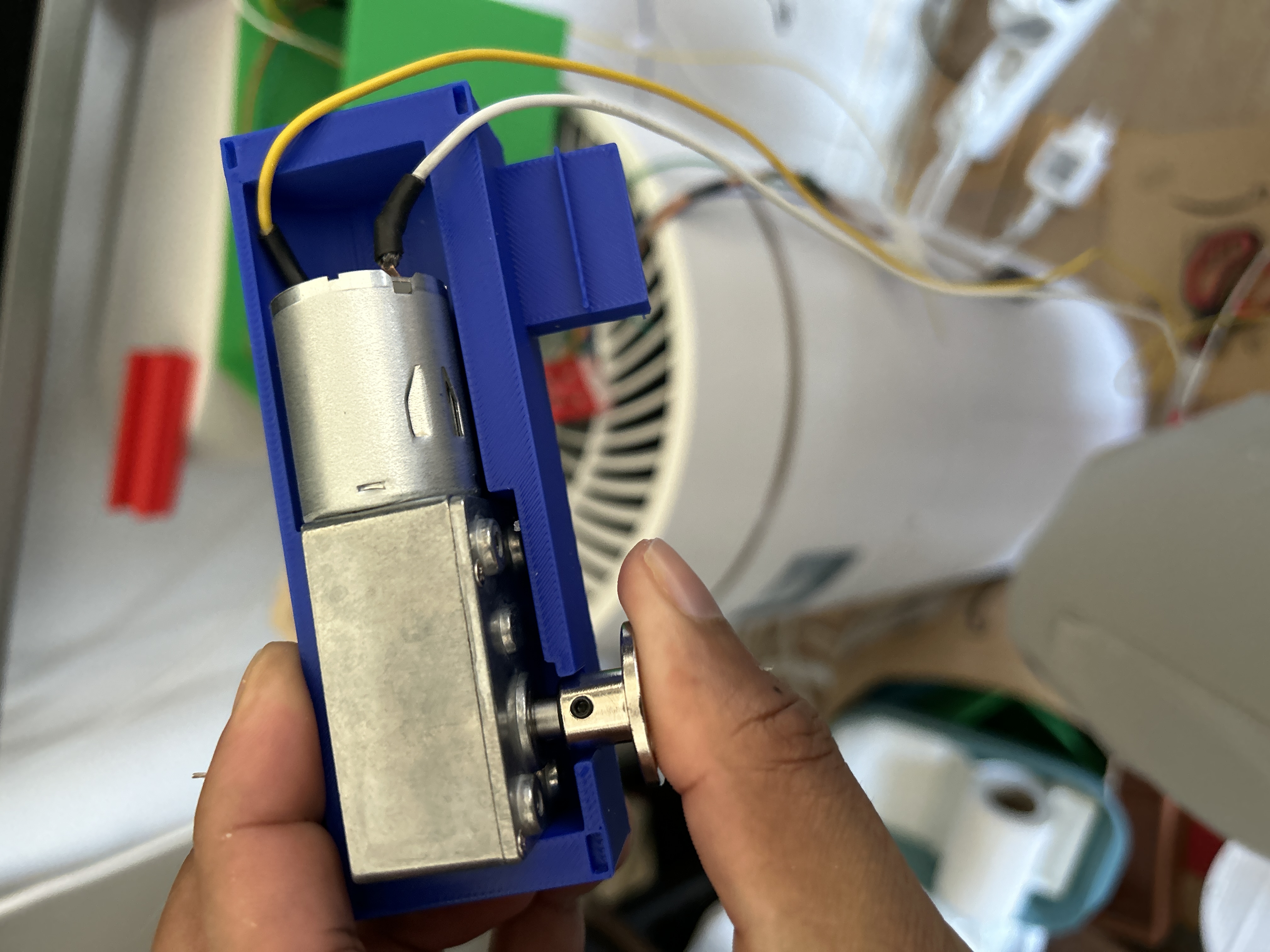

First chassis prototype for the DC motor: image

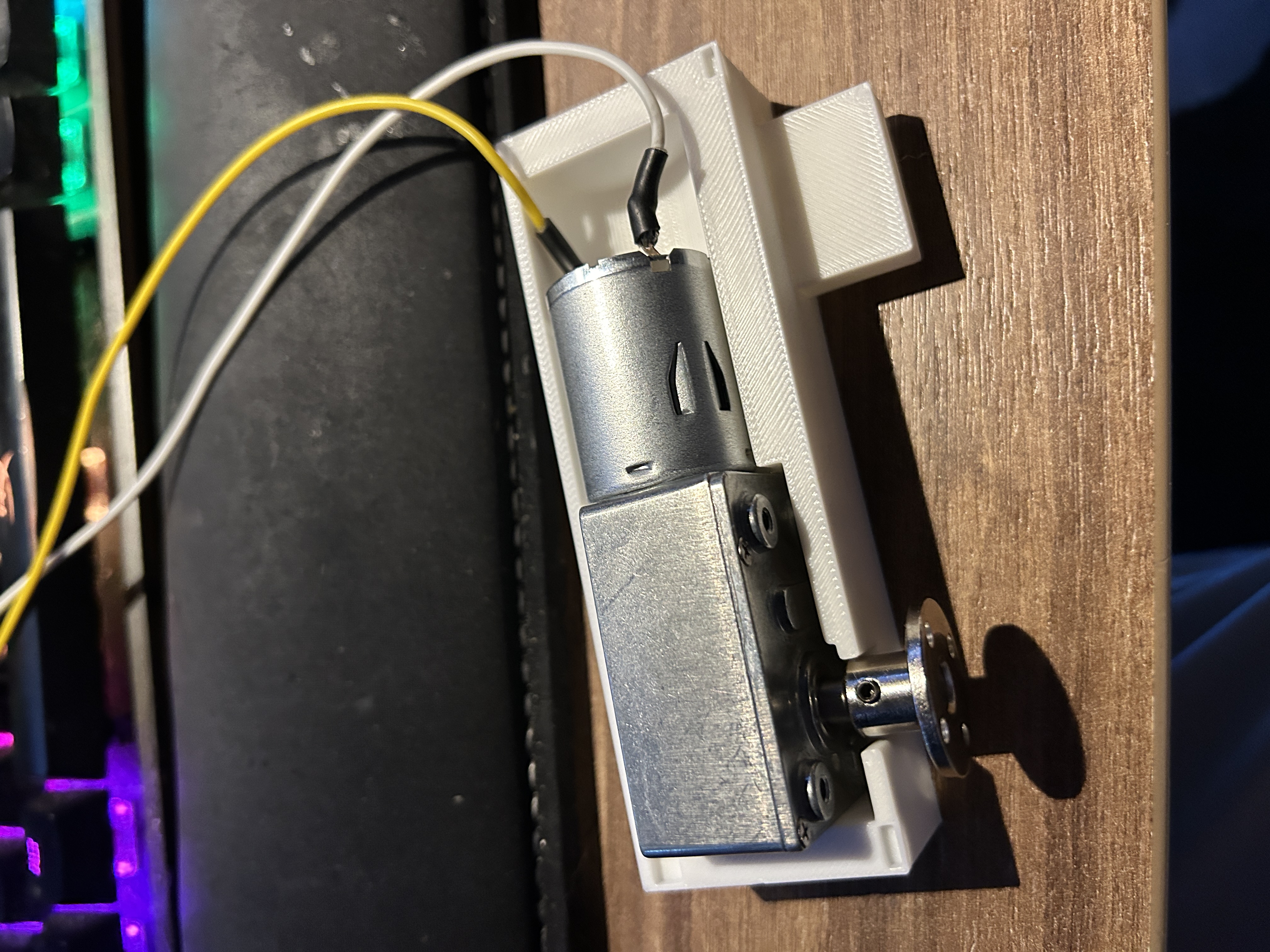

Smaller variant prototypes: image image

⏭️ Next steps

  • Calibrate portion size and rotation per feed.
  • Add sensors (jam detection / position).
  • Wire up controller + relays; plan enclosure.
  • Safety check for paws & fur near moving parts.
